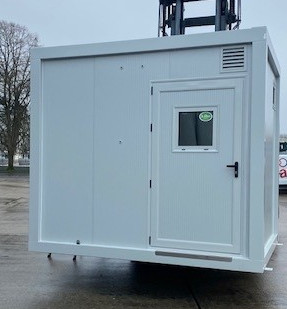

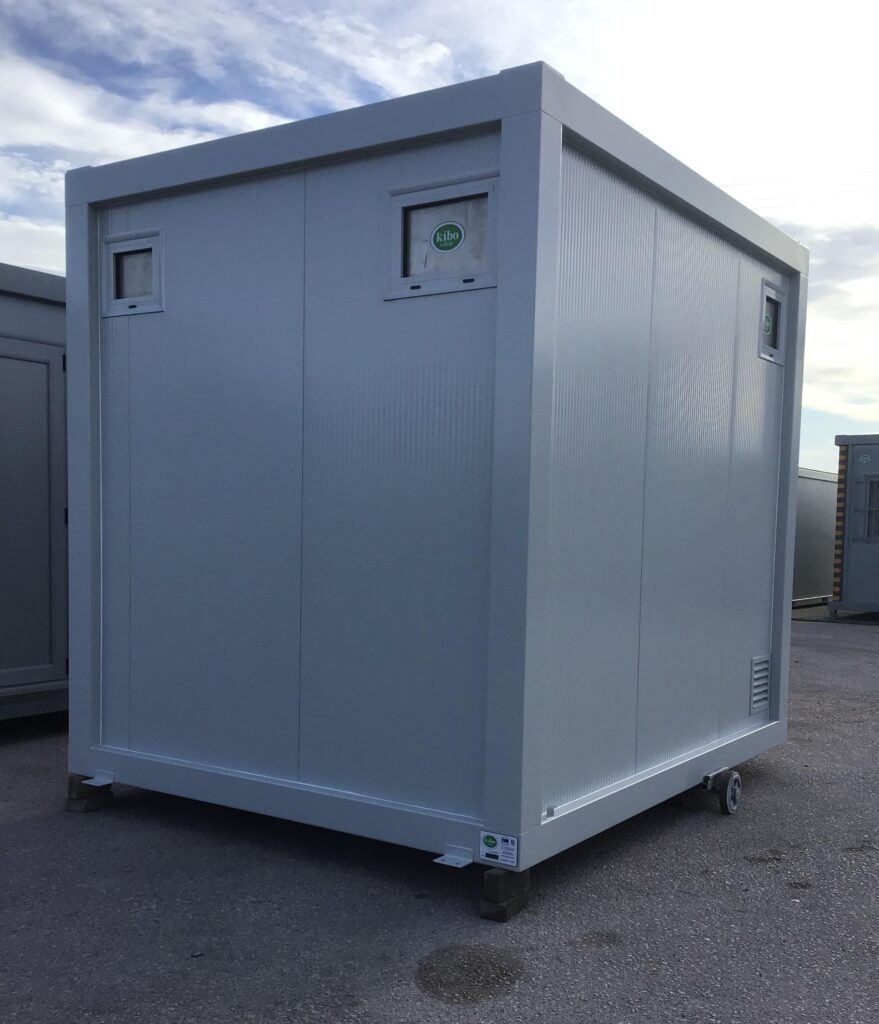

Portable steel control cabins, enclosures and equipment housings individually manufactured to your requirements.
Sample Specification:
Frame:
Strong visible metal frame with 2mm tube profiles, Galvanised base, Suspension points, Perimeter horizontal gutter, Electrostatic paint, anchoring points, lifting points (4pcs)
External and internal right angles
External decorative metal sheets
Colour of the cabin (C5-I /ISO 12944 PAINTING SYSTEM)
Colour of the frame: Ral 7042 / TRAFFIC GREY A
Colour of the walls (outside): SILVER METALLIC
Colour of the walls (inside): Ral 9002/GREY WHITE
Colour of the openings: RAL 9006 / WHITE ALUMINIUM
Insulation (wall, floor, roof): R-12 INSULATION -24 GAUGE THICK
Wall: Panels 60mm PUR (thermal insulation)
Roof: 90mm PUR (thermal insulation)
Floor:
The floor is made from a wavy galvanised iron sheet, 10mm plywood and PVC oilcloth (one piece without joints) which is the final flooring (waterproof in hygienic spaces)
Electrical installation:
One switchboard, telephone line, electrical line for air-conditioning, external power standby, emergency light over the door.
Internal electric lighting
Dimensions
External dimensions: 2.40m x3.00mx 2.70m.(H)
Internal dimensions: 2.16m x 2.76m x 2.40m.(H)
Openings:
Entrance door (minimum dimensions) 1.00×2.00m. (1pc)
Vision panel on the upper part of the door – 0.50m X 0.50m.
Lockable with a secure locking mechanism (yes)
Infrastructure
3 cuts outs for gland plates
1. 0.50×0.50m
2. 0.40×0.40m.
3. 0.30×0.30m.
Mounting points
Note:
Load capacity of 150kg/m2
This is a sample specification only, to give an idea of what is possible, all units are manufactured to order so individual details will vary depending on requirements etc.
For a specific quotation, please email details of your requirements to sales@tpstructures.co.uk or telephone 01743 818366 to discuss.
